Copper Cables

Medium Voltage Power Cables
Home Products Medium Voltage Power Cables Copper Cables

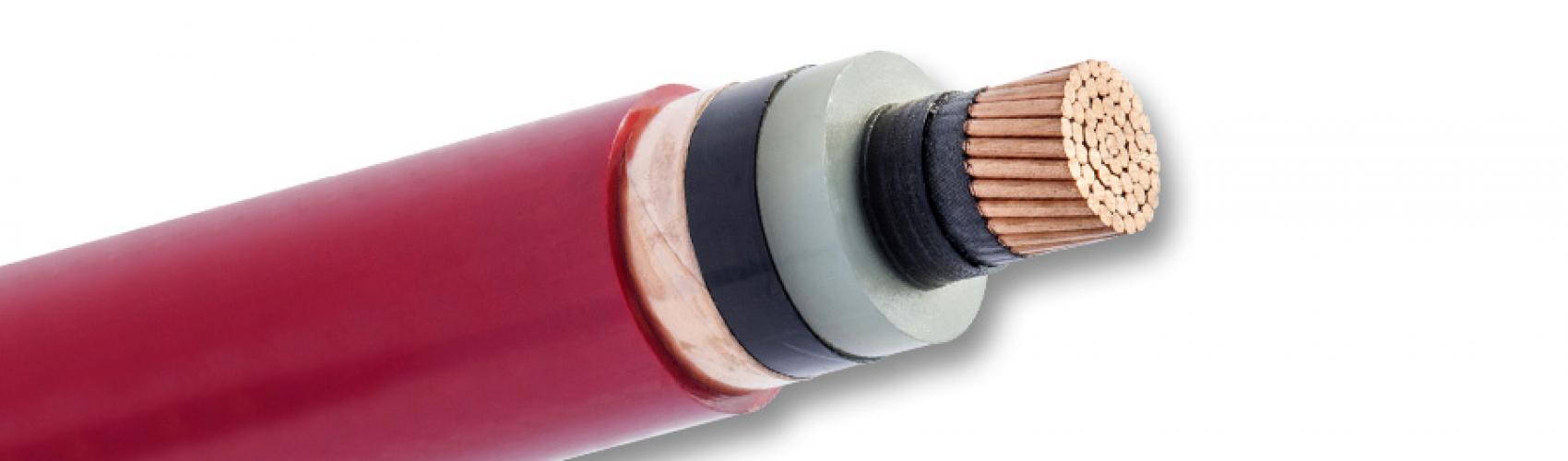

Copper Cables

Rated Voltage 1.8/3.0 - 18/30 kV
  XLPE Insulation
PVC Sheath
XLPE Insulation
PE Sheath
Cross Section
Twisted Cables 2-4 cores NF2XSY NF2XS2Y up to 18/30 kV: 35-300
2-3 cores NF2XSY-T NF2XS2Y-T up to18/30 kV: (50-150)+50
Single Core + copper tape screen N2XSY N2XS2Y 3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
+ copper wire screen N2XCY N2XC2Y 3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
+ aluminium tape armor N2XSB(AL)Y N2XSB(AL)2Y 3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
+ aluminium wire armor N2XSR(AL)Y N2XSR(AL)2Y 3.6/6 kV:25-800
6/10 kV: 25-800
8.7/15 kV: 25-800
12/20 kV: 35-800
18/30 kV: 50-800
Three Cores with individual copper tape screen N2XSEY N2XSE2Y 3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
+ steel round wire armor N2XSERY N2XSER2Y 3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
+ steel flat wire armor N2XSEFGbY N2XSEFGb2Y 3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
+ double steel tape armor N2XSEBY N2XSEB2Y 3.6/6 kV:25-300
6/10 kV: 25-300
8.7/15 kV: 25-300
12/20 kV: 35-300
18/30 kV: 50-300
